PC Plus TX 2 Phase 8kva Online High Frequency Ups With Dual Input AC
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | HRD/OEM OR ODM |
| Certification: | CE, TUV, ISO9001-2008 |
| Model Number: | 6K,10K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20ft |
|---|---|
| Price: | 1000USD/PCS; |
| Packaging Details: | with wooden pallet |
| Delivery Time: | 3 weeks after down payment |
| Payment Terms: | TT or LC |
| Supply Ability: | 2000pcs/ month |
| Warranty: | 18months after shipment with 1.5% spare parts with consigment |
|
Detail Information |
|||
| Highlight: | online power supply,online uninterruptible power supply,8kva Online High Frequency Ups |
||
|---|---|---|---|
Product Description
PC Plus TX 2 Phase 8kva Online High Frequency Ups With Dual Input AC
Quick Detail:
1)SNMP/AS400/USB/Smart RS-232 Optional
2) Capacity: 6KVA/5.4kW 10KVA/9kW
3) Charge voltage:275Vdc
PC plus TX 2 phase Online UPS 6-10KVA, No breaks
1.DSP control ,with excellent performance and comprehensive protections for load and UPS ;
2. Output power factor 0.9,offering more stronger load capability;
3. Large LCD ,multi language display(English, Spanish, Portuguese…),plenty of information
4.Wide input range ,support kinds of generator;
5.Dual input AC source supportable
5. EPO(emergency power off);
6.Event log up to 100 events, recording UPS running time and critical memories ;
7.Configuable output both 120/ 208/240Vac
8.N+X parallel redundancy, up to 6units
9.AC and cold start function;
10. ECO function
11. Conformal coating PCB for more critical operation environment
12. Frequency convertor mode(input 60Hz, output 50Hz,vice versa)
13.Intelligent fan running, varying according to load and temperature, 4 levels;
14. Multiple communication ports (optional)
15. Intelligent 10A DSP charger (optional)
Technical Specification:
|
Model |
PCP6K -TX |
PCP6KS -TX |
PCP10K -TX |
PCP10KS -TX |
||||||
|
Capacity(Kva/kW) |
6KVA/5.4kW |
10KVA/9kW |
||||||||
|
Input PF |
≥0.99 |
|||||||||
|
Input voltage |
Phase |
2Lines |
||||||||
|
Low transfer |
L-L:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load |
|||||||||
|
Low back |
L-L188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load |
|||||||||
|
High transfer |
L-L 286 VAC ± 3% |
|||||||||
|
High back |
L-L:270 VAC ± 3% |
|||||||||
|
Input frequency |
40-70hz |
|||||||||
|
Battery |
||||||||||
|
quantity |
external battery |
20PCS*12V*7Ah |
external battery |
20PCS*12V*9Ah |
||||||
|
Back up time |
depend on external Battery |
6mins @ full load |
depend on external Battery |
4mins @ full load |
||||||
|
DC voltage |
240Vdc |
|||||||||
|
Charge voltage |
275Vdc |
|||||||||
|
Recharging current |
4A(8A optional) |
1A |
4A(8A optional) |
1A |
||||||
|
Output |
||||||||||
|
Output P.F |
0.9 |
|||||||||
|
Output voltage |
120/208/240Vac +/-1%(static) |
|||||||||
|
Frequency |
46~54Hz or 56~64Hz (Line mode) |
|||||||||
|
Crest factor |
3:1(max) |
|||||||||
|
Wave distortion |
Less than 2%(linear load), Less than 4% Non-linear load |
|||||||||
|
Over load |
105%<load<125% for 1 mins ,125%<load<150% for30sec |
|||||||||
|
Efficiency |
89%(Line mode) |
|||||||||
|
88%(AC mode) |
||||||||||
|
Transfer time |
0ms (AC-Battery); |
|||||||||
|
0 ms(bypass-inverter) |
||||||||||
|
Indicator |
||||||||||
|

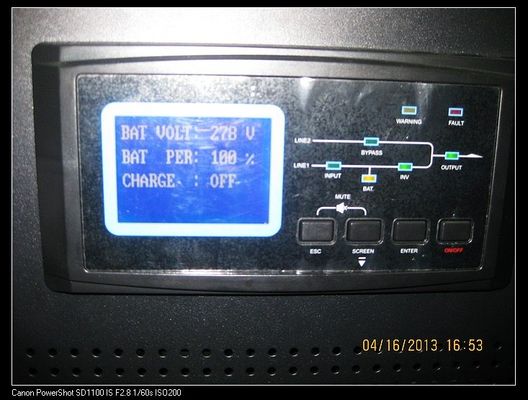

LCD Panel |
UPS status, Load level, Load watt,Load VA,Battery level, Input/Output voltage, output current,Bus voltage, Temp, and warning and fault code and events |
|||||||||
|
Alarm |
||||||||||
|
Battery Mode |
Sounding every 4 seconds( can mute) |
|||||||||
|
Low Battery |
Sounding every second |
|||||||||
|
Overload |
Sounding every second |
|||||||||
|
Fault |
Continuously sounding |
|||||||||
|
Management |
||||||||||
|
Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC |
|||||||||
|
Optional |
SNMP/AS400/USB |
|||||||||
|
Environment |
||||||||||
|
Operation Humidity |
0-90 % RH (non-condensing) @ 0- 40°C |
|||||||||
|
Noise Level |
Less than 55dBA @ 1 Meter |
Less than 60dBA @ 1 Meter |
||||||||
|
Physical |
||||||||||
|
Net Weight (KG) |
62 |
120 |
160 |
206 |
||||||
|
Gross Weight(KG) |
74 |
132 |
180 |
249 |
||||||
|
UnitDimension (D*W*H)mm |
509*250*530 |
600×300×810 |
600*300*742 |
600*300*892 |
||||||
|
Packing (D*W*H)mm |
650*363*765mm |
680*360*960 |
720*420*920 |
720*420*1070 |
||||||
Note:All specifications subject to change without further notice; customized specifications are acceptable
