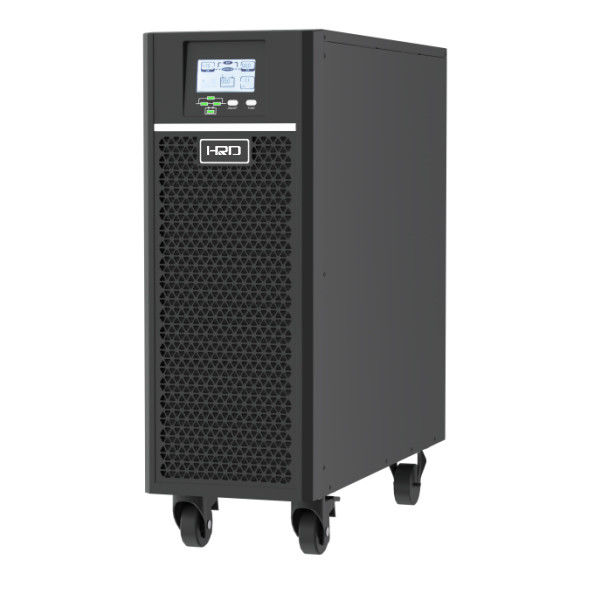

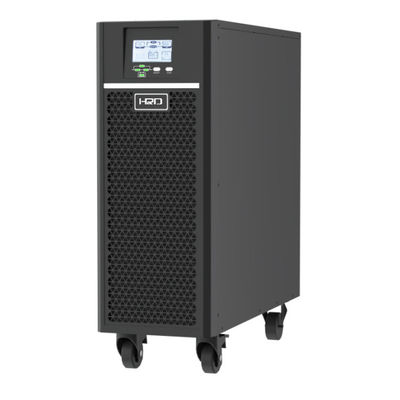

PC MAX 10-20KVA 3/1PHASE
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OEM/HRD |
| Certification: | ISO9001,CE |
| Model Number: | PCM3310L ,PCM3115L,PCM3120L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 650-1200USD/PCS; |
| Packaging Details: | standard for export |
| Delivery Time: | 5-6weeks after deposit |
| Supply Ability: | 500PCS /WEEK |
|
Detail Information |
|||
| PF: | 1.0 | Efficency: | 95% |
|---|---|---|---|
| Charger: | 1-12A | Warranty: | 18months |
Product Description
Power Capacity
10~20KVA,1.0PF
Operation:
3P/1P and 1P/1P, Online double conversion
Perfect Application:
Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, etc.
Main Features:
- 3/1phase and 1/1phase settable.
- Online 3-level topology, excellent performance and efficiency 95%.
- Online double conversion, full digital control.
- ABM fast charger 1-12A settable
- Output PF=1, high load adaptability.
- Wide range of input voltage and frequency tolerance.
- Adapt to half-wave load and compatible with generator.
- Auto fault waveform recording.
- Self-aging test function,
- Self-aging function to save test energy.
 Model |
PCM3110L | PCM3115L | PCM3120L |
|
| Rate Power | 10kVA | 15kVA | 20kVA | |
| Cold start | Default output 50/60Hz | |||
| Input voltage range | 190~499VAC(L-L) | |||
| Input power factor | ≥0.99 | |||
| Frequency range | 40-70Hz | |||
| Output frequency | 50/60Hz,self adaption | |||
| Output power factor | 1.0 | |||
| Rate output | 220/230/240VAC | |||
| Load regulation | ±1% | |||
| Output THDu | ≤1%,Linear load ≤3%,non-linear load according to IEC62040-3 |
|||
| Transfer time-INV to BYP | 0ms | |||
| Efficiency- normal mode | Max 95% | |||
| Efficiency- ECO mode | 98% | |||
| Noise (1 meter) | <55dB | <62dB | <62dB | |
| Overload (normal mode) | 110%:10mins；125%:1min；150%:30 seconds | |||
| Battery | Model | External batteries,16-24 settable | ||
| Quantity | ||||
| Max charging | 5A | |||
| Rate voltage | Default 192VDC,settable | |||
| Crest factor | 3:1 | |||
| Standard | RS232&USB, RS485, EPO | |||
| Option | AS400, SNMP card, Parallel kit, Air filter, Maintenance bypass kit | |||
| Dimension, W*D*H(mm) | 190*564*500 | |||
| Weight(kg) | 30 | |||
| Statement: Specification may updates without further notice. | ||||
