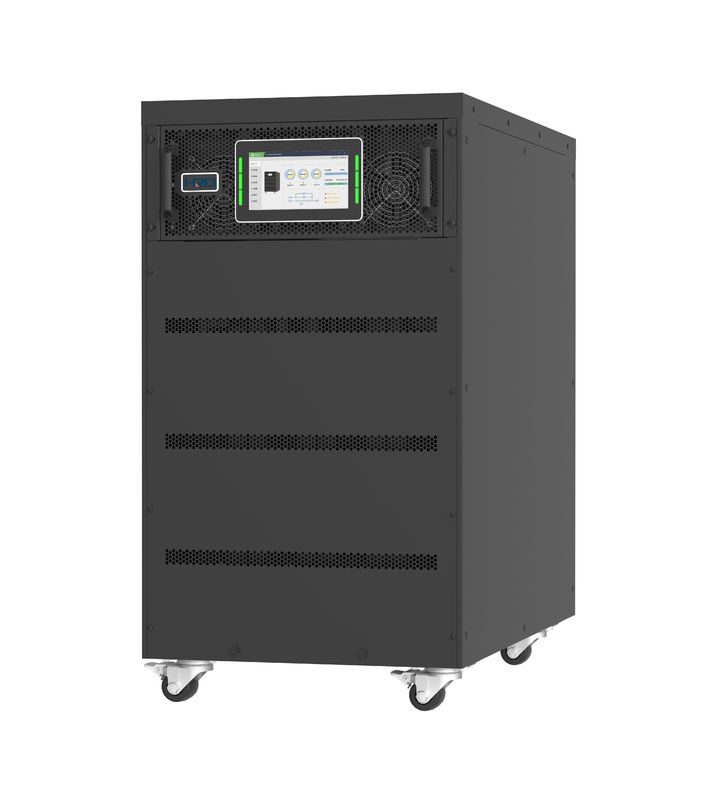

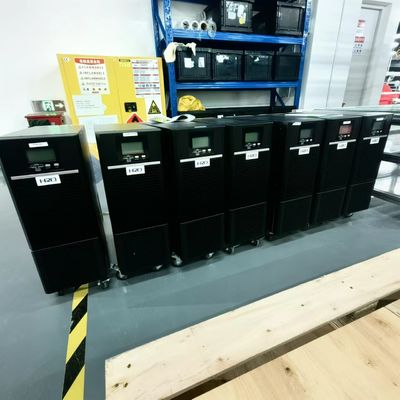

Double Conversion 3 Phase Online Surge Protection UPS

Quick Detail:

1) Rated voltage:190/208/220Vac, Line-Line Voltage

2) Type: On-line

3)Use for Servers,Data-center,Telecom

POWERWELL series Online HF UPS 3/3phase 10-40kva transformerless,

(For 190/208/220Vac, Line-Line Voltage);

Perfect Applications:

Internet Servor ,Internet Data Center), Medium-scale network system / computingcenter, bank and securities, business server group, Medium-scale office automation,precision equipment, etc.

Features: complete digital control technology

Fully digital control with two DSPs, all the subsystems are digital controlled including the IGBT rectifier, inverter, charger, discharger.

Excellent electrical properties

True online double conversion instruction offers the safe and effective power protection for various loads, with strong output load capacity;

High input power factor, green and energy-saving

Input end with PFC and input PF of the whole UPS up to 0.99;

Dual AC input source supportable

Allowable AC and bypass 2 input ac source

Strong environmental adaptability

Wide input voltage and frequency range, adaptation to all kinds of climatic

and geographical environment;

Comprehensive protection measures

 Surge Protection, short circuit protection, and other protection to ensure the reliability of UPS;

IGBT and SCR adopt the advanced EUPEC power module;

The adoption of advanced technology (IGBT driving technology, IGBT soft over-current shutdown) improves the reliability and safety of inverter.

Intelligent battery management

Adopting the intelligent battery management, prolonging the using life

of battery,decrease the maintaining work;

The max battery charging current can set by end users according to the

battery features, to avoid any damage caused by the big charging current;

Periodic self-test battery, detecting the battery problems timely;

With battery over voltage / current protection, to protect the battery;

Cold start and Mains start Function

Directly start the UPS through battery or start UPS through Mains only.

Superior network monitoring capabilities

Communication port (RS232, USB, and so on) connecting with computer,SNMP card optional,

Easy-maintenance design

a) Adopts the full front maintenance design, reducing the restrictions

on the installation space, and saving the space of computing center;

b)Modular design class, convenient and easy site maintenance;

c) With manual maintain bypass,

d)Battery replacement without disrupting the UPS running;

e) Historical records search function, events up to1,000 items;

Friendly interface

 LargeLCD display and LED status indication; Abundant information display of UPS;

Technical Specifications:

Model		PWMAII3310S	PWMAII3315S	PWMAII3320S	PWMAII3330S	PWMAII3340S
		PWMAII3310L	PWMAII3315L	PWMAII3320L	PWMAII3330L	PWMAII3340L
Rate Power		10kVA/10kW	15kVA/15kW	20kVA/20kW	30kVA/30kW	40kVA/40kW
Main input	Rate Voltage	190/208/220Vac(L-L) 110/120/127ac(L-N)
	Input range	125-265Vac(L-L) for full load; 3P5W (3P+N+PE)
	Rate Freq.	50/60Hz
	Input PF	>0.99
	THDi	THDi<3% @100% Linear load;THDi<6%@ 100%Non- Linear load;
	Freq. range	40-70Hz
Battery/Charger	Rate voltage	±96-120Vdc settable
	Model	UPS with internal ,12VDC/7~9Ah,maximum 3*40PCS
		UPS for external battery,16-20PCS settable
	Charging capacity	20% of UPS capacity
Bypass	Rate voltage	190/208/220Vac(L-L)110/120/1270Vac(L-N)
	Voltage range	Range: -40%- +25% , Settable, default -20% +15%
	Frequency range	50/60Hz Settable ±1Hz ±3Hz ±5Hz
Inverter	Rate voltage	190/208/220/Vac(L-L) 110/120/127Vac(L-N)
	Rate Freq.	50/60Hz
	Output PF	1.0
	Voltage accuracy	±1.0%
	Load response	<5% (20% - 80% -20% step load)
	Recovery time	< 20ms (0% - 100% -0% step load)
	Output THDu	<1% linear load ,<5% non-linear load according to IEC 62040-3
	Overload	110%,1 hour 125%,10 mins 150%,1 min >150%,200ms
	Frequency accuracy	0.1%
	Synchronize window	Settable ±0.5Hz-±5Hz default ±3Hz
	Slew rate	Settable 0.5Hz/S-3Hz/S default 0.5Hz/S
	Crest factor	3:1
	Phase Accuracy	120°±0.5°
System	Efficiency
	Display	LED + 7 inch touch LCD
	Certification- Safety	IEC62040-1, IEC60950-1
	Certification- EMS	IEC62040-2 IEC61000-4-2(ESD) IEC61000-4-3(RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge)
	IP degree	IP20
	Configuration	USB, RS232, RS485, Dry contact, Air filter
	Option	SNMP card, AS400 card, Parallel kit, LBS, Cold start
	Environment	0-40 operation -25 ~70 storage 0-95% (Humidity, non-condensing )
Dimension (W*D*H) mm	Internal batteries model	500*864*922
	External battery model	250*530*650
