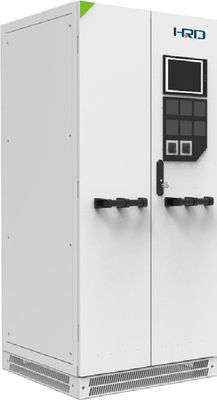

H6000-M Industrial 600kva Online Low Frequency Ups For Marine Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | HRD /OEM |
| Certification: | ISO9001 |
| Model Number: | H6000-M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Standard for export |
| Supply Ability: | 100pcs/month |
|
Detail Information |
|||
| Communication Interface: | RS232/RS485/SNMP | Output Waveform: | Pure Sine Wave |
|---|---|---|---|
| Transfer Time: | 0ms | Cooling Method: | Forced Air Cooling |
| Product Name: | H6000- Marine Online UPS 10-600kVA | Output Voltage: | 220V/380V |
| Operating Temperature: | 0-40℃ | Power Factor: | 0.9 |
| Highlight: | 600kva online low frequency ups,marine industrial online low frequency ups,600kva low frequency online ups |
||
Product Description
Product Description:
It is a fully DSP controlled industrial marine UPS with super high-reliability, suitable for kinds of marine and offshore applications!
Professional marine environment structural design is designed according to the marine environment and complies with marine standard,UPS main cabinet IP43 protection level .Patented battery management technology, effectively extending battery life. Internal components are specially treated to resist salt-alkali corrosion and moisture resistance. The bottom of the host can be designed for shock absorption. The protective installation device is completely front-end maintained and can be placed on the wall. Friendly human-machine interface supports multi-language, master-slave-free intelligent parallel technology, which can realize N+X redundant/increased parallel system. It is equipped with intelligent communication slots and supports a variety of communications.
Advantages:
※ Professional with patented marine environment structural design
※ All internal components are specially treated to resist salt-alkali
corrosion and moisture;
※Vibration-proof design to suitable on ship, full front
accessible maintenance design
※Top out ventilation system,can be installed against wall to save space
※Strong load capacity, 110% long time working to stand with kinds of
industrial loads with in-rush current ect.
※7-inch industrial-grade supports multi-language master-slave
touch screen parallel technology.
※ Double isolation with input and output isolation transformer
※Innovative intelligent parallel technologyup to 8 units, N+X redundant/expansion
(Based on our own patent parallel technology,to realize synchronization,
Load sharing and selected turning off;
※Supports a variety of communication devices, SNMP, MODUBUS, etc.
※ Input isolation transformer available(Optional)
Perfect Applications:
Computer network systems, centralized emergency power supply systems, comprehensive service systems, and central emergency lighting systems that protect ships or offshore platforms.
Online double conversion design, high reliability rectification and intelligent GBT inverter technology.
Technical Parameters:
| Product Name | H6000- Marine Online UPS 10-600kVA |
|---|---|
| Frequency | 50/60HZ |
| Power Factor | 0.9 |
| Output Voltage | 220V/380V |
| Output Waveform | Pure Sine Wave |
| Cooling Method | Forced Air Cooling |
| Humidity | 0-95%RH |
| Battery Voltage | 220/384/408/480V |
| Communication Interface | RS232/RS485/SNMP |
| Operating Temperature | 0-40℃ |
| Special Features | 110% overload long time working, Parallel up to 8 units, 110% overload long time working |
Applications:
The HRD/OEM H6000-Marine Online UPS 10-600kVA is designed for marine applications and offers a high level of reliability. It features an active power factor correction and allows parallel up to 8 units. With a frequency of 50/60HZ, humidity of 0-95%RH, battery voltage of 220/384/408/480V and an efficiency of ≥93%, it is the perfect choice for any marine project.
The HRD/OEM H6000-Marine Online UPS 10-600kVA is a reliable choice for any marine application. It features an active power factor correction, a frequency of 50/60HZ, a humidity of 0-95%RH, a battery voltage of 220/384/408/480V, an efficiency of ≥93% and the ability to parallel up to 8 units. It is designed to provide users with the highest level of power protection and reliability, making it the ideal choice for any marine project.
Customization:
Product Information:
- Brand Name: HRD /OEM
- Model Number: H6000
- Place of Origin: China
- Output Voltage: 220V/380V
- Communication Interface: RS232/RS485/SNMP
- Frequency: 50/60HZ
- Power Factor: 0.9
- Operating Temperature: 0-40℃
Highlights:
- Marine Industrial UPS, capacity 10-600kVA
- Highly reliable and stable performance
Support and Services:
Our Online Low Frequency UPS product comes with a comprehensive technical support and service package.
We provide technical advice and support for installation, operations, maintenance and repair. Our technical team is available to help you during the installation process, answer any questions that you may have and help you troubleshoot any issues that arise.
We also offer onsite maintenance and repair services. Our technicians are equipped to handle any repair or maintenance needs that arise.
In addition, we provide a comprehensive warranty for our Online Low Frequency UPS product. This warranty covers any defects in materials or workmanship for a period of three years from the date of purchase.
Packing and Shipping:
Packaging and Shipping for Online Low Frequency UPS:
Our Online Low Frequency UPS products are securely packaged and shipped in heavy-duty cardboard boxes. Each package is sealed with waterproof and tamper-proof tape. Upon request, we can also provide additional protection for your package with bubble wrap or foam packing. All packages are shipped via regular postal service or a reliable courier service.
